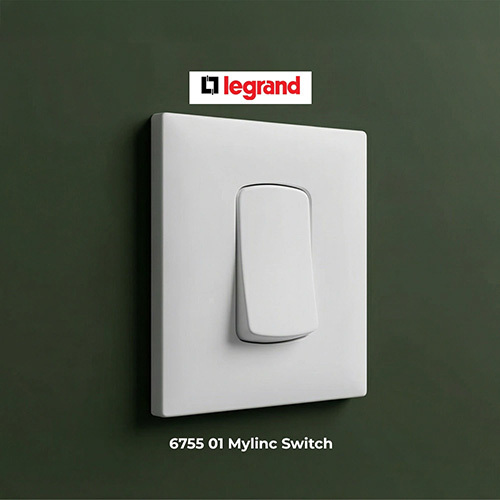

Legrand Modular Switches

• Automation Grade
• Manual

• Circuit Type
• One Way

• Color
• White

• Contact Resistance
• 10 m

• Current Rating
• 10 Ampere

• Finish Type
• Glossy/Matte (as per variant)

• Insulation Resistance
• 2000 M at 500 V DC

• Material
• Polycarbonate (Fire Retardant)

• Max. Current
• 10 A

• Max. Voltage
• 250 V AC

• Mechanical Life
• More than 1,00,000 operations

• Mounting Type
• Flush Mount, Surface Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to 40C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250 V AC

• Response Time
• Instantaneous (Mechanical)

• Size
• 86 mm x 86 mm (Standard Plate)

• Stoke
• Smooth Action (Soft Touch Mechanism)

• Temperature Range
• -5C to 40C

• Weight
• Approximately 60 grams

• Automation Grade
• Manual

• Circuit Type
• 1-way or 2-way (model dependent)

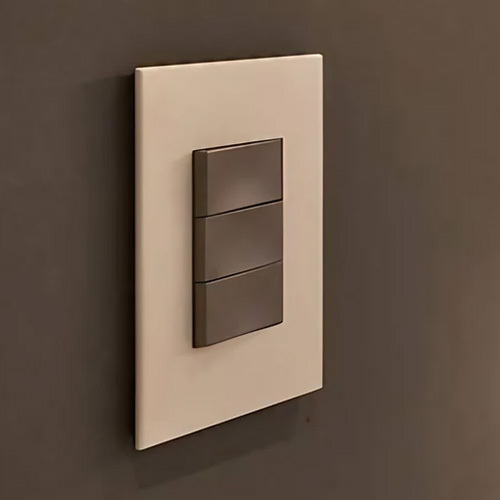

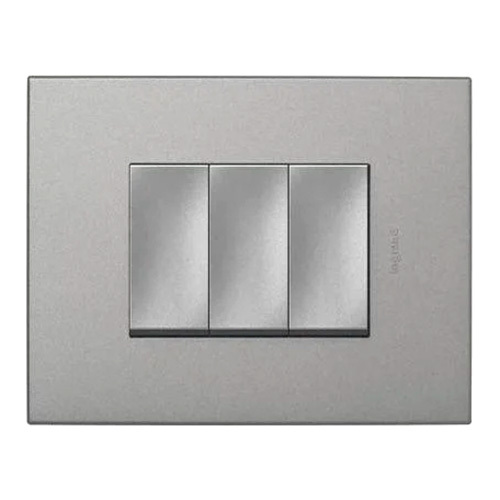

• Color
• Magnesium

• Contact Resistance
• Less than 10 m

• Current Rating
• 6A/10A/16A (variant dependent)

• Finish Type
• Magnesium Metallic

• Insulation Resistance
• More than 2 M at 500V DC

• Material
• Polycarbonate with Magnesium Finish

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• More than 100,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1M/2M/3M (variant dependent)

• Operating Temperature
• -5C to +40C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• Instant switching

• Size
• Standard Modular (as per IS 3854)

• Stoke
• Smooth, Silent Action

• Temperature Range
• -5C to +40C

• Weight
• Approx. 40 grams (for 1 module)

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• Champagne

• Contact Resistance
• Less than 10 m

• Current Rating
• 10 Amp

• Finish Type
• Matte Champagne finish

• Insulation Resistance
• More than 2000 M at 500V DC

• Material
• Flame Retardant Polycarbonate

• Max. Current
• 10A

• Max. Voltage
• 240V AC

• Mechanical Life
• 30,000 cycles minimum

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -10C to +60C

• Product Type
• Modular Electrical Switch

• Protection Level
• IP20

• Rated Voltage
• 240V - 50Hz

• Response Time
• Instantaneous mechanical operation

• Size
• 86mm x 86mm (1-module switch)

• Stoke
• Tested for 30,000 operations minimum

• Temperature Range
• -10C to +60C

• Weight
• Approx. 50g

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• White

• Contact Resistance
• <20 m

• Current Rating
• 10A

• Finish Type
• Glossy

• Insulation Resistance
• >2000 M

• Material
• Polycarbonate (PC)

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• >50,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1

• Operating Temperature
• -5C to 55C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• Instantaneous

• Size
• 1 Module

• Stoke
• Smooth actuation

• Temperature Range
• -5C to 55C

• Weight
• 17g (approx.)

• Automation Grade
• Manual

• Circuit Type
• 1-Way

• Color
• Grey

• Contact Resistance
• <20 m

• Current Rating
• 6A/16A

• Finish Type
• Matte

• Insulation Resistance
• 200 M at 500V DC

• Material
• Polycarbonate (PC) Housing

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• 50,000 Operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1M/2M/3M

• Operating Temperature
• -5C to 55C

• Product Type
• Modular Electrical Switch

• Protection Level
• IP20

• Rated Voltage
• 250V

• Response Time
• <10 ms

• Size
• 86mm x 86mm (Standard Modular)

• Stoke
• 50,000 Cycles

• Temperature Range
• -5C to 55C

• Weight
• 42g

• Automation Grade
• Manual

• Circuit Type
• SPST

• Color
• White

• Contact Resistance
• 10 m

• Current Rating
• 6A

• Finish Type
• Glossy

• Insulation Resistance
• 1000 M at 500V DC

• Material
• Polycarbonate (PC)

• Max. Current
• 6A

• Max. Voltage
• 250V AC

• Mechanical Life
• > 80,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to +55C

• Product Type
• White Electrical Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• < 25ms

• Size
• Standard Modular Size (86mm x 86mm)

• Stoke
• Smooth Snap Action

• Temperature Range
• -5C to +55C

• Weight
• Approx. 45g

• Automation Grade
• Manual

• Circuit Type
• Single Circuit

• Color
• Grey

• Contact Resistance
• <10 m

• Current Rating
• 6A / 10A

• Finish Type
• Matte Finish

• Insulation Resistance
• >2000 M at 500V DC

• Material
• Polycarbonate

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• More than 100,000 operations

• Mounting Type
• Wall Mounted

• No Of Poles
• Single Pole

• Number of Module
• 1M / 2M / 3M / 4M

• Operating Temperature
• -10C to 55C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 240V AC

• Response Time
• Instantaneous

• Size
• Standard Modular

• Stoke
• Smooth, Soft Touch

• Temperature Range
• -10C to 55C

• Weight
• Approx. 24 g

• Automation Grade
• Manual

• Circuit Type
• Single Phase

• Color
• White

• Contact Resistance
• < 20 m

• Current Rating
• 10A/16A/20A

• Finish Type
• Glossy

• Insulation Resistance
• > 2000 M at 500 V DC

• Material
• Polycarbonate (front), Silver Alloy (contacts)

• Max. Current
• 10A/16A/20A (as per model)

• Max. Voltage
• 240V AC

• Mechanical Life
• > 100,000 operations

• Mounting Type
• Flush Mounted

• No Of Poles
• 1 Pole

• Number of Module
• 1M / 2M / 3M / 4M / 6M

• Operating Temperature
• -5C to 40C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 240V AC

• Response Time
• Instantaneous

• Size
• Standard Modular (as per module)

• Stoke
• Smooth Soft Action

• Temperature Range
• -5C to 40C

• Weight
• Approx. 25g per module

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• White

• Contact Resistance
• 20 m

• Current Rating
• 6A, 16A

• Finish Type
• Glossy

• Insulation Resistance
• 500 M at 500V DC

• Material
• Polycarbonate, Brass

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• >40,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1

• Operating Temperature
• -10C to 55C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• <15 ms

• Size
• Standard 2.7 cm x 7.4 cm (1 module)

• Stoke
• Smooth, up to 40,000 cycles

• Temperature Range
• -10C to 55C

• Weight
• 15g (Per Switch)

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• White

• Contact Resistance
• 20 m

• Current Rating
• 6A

• Finish Type
• Glossy

• Insulation Resistance
• 1000 M

• Material
• Polycarbonate/Plastic

• Max. Current
• 6A

• Max. Voltage
• 250V AC

• Mechanical Life
• Over 100,000 cycles

• Mounting Type
• Wall Mounted

• No Of Poles
• 1

• Number of Module
• 1M/2M

• Operating Temperature
• -5C to +55C

• Product Type

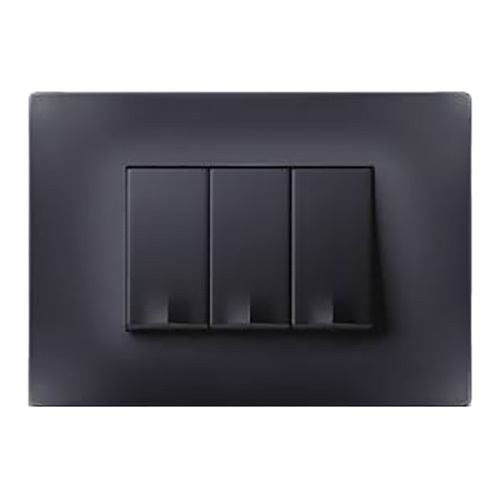

• Lyncusb Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• < 20ms

• Size
• 86mm x 86mm

• Stoke
• Soft Touch

• Temperature Range
• -5C to +55C

• Weight
• Approx. 90g

• Automation Grade
• Manual

• Circuit Type
• 1-way or 2-way

• Color
• White

• Contact Resistance
• < 10 m

• Current Rating
• 6/10/16 A (as per different variants)

• Finish Type
• Glossy

• Insulation Resistance
• > 2000 M at 500 V DC

• Material
• Polycarbonate (high grade plastic)

• Max. Current
• 10 A

• Max. Voltage
• 250 V AC

• Mechanical Life
• > 40,000 operations

• Mounting Type
• Flush Mount, Surface Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1M, 2M

• Operating Temperature
• -5C to 45C

• Product Type
• Lyncusg Switch

• Protection Level
• IP 20

• Rated Voltage
• 240 V AC

• Response Time
• Instantaneous, <20 ms

• Size
• 86 mm x 86 mm

• Stoke
• 40,000 cycles

• Temperature Range
• -5C to 45C

• Weight
• 90 g approx

• Automation Grade
• Manual

• Circuit Type
• Single Pole

• Color
• White

• Contact Resistance
• <50m

• Current Rating
• 10A

• Finish Type
• Glossy

• Insulation Resistance
• 500V DC 100M Min

• Material
• Polycarbonate (Housing), Copper (Contact)

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• 50,000 cycles

• Mounting Type
• Flush Mount

• No Of Poles
• 1

• Number of Module
• 1 Module

• Operating Temperature
• -10C to +55C

• Product Type
• Rocker Switch

• Protection Level
• IP20

• Rated Voltage
• 250V

• Response Time
• Instant

• Size
• 86mm x 86mm

• Stoke
• 3mm

• Temperature Range
• -10C to +55C

• Weight
• 42g

• Automation Grade
• Manual

• Circuit Type
• 1 Way / 2 Way

• Color
• White

• Contact Resistance
• < 20 m

• Current Rating
• 6A / 10A / 16A

• Finish Type
• Glossy

• Insulation Resistance
• > 2000 M

• Material
• Polycarbonate (PC)

• Max. Current
• 6A / 10A / 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• > 1,00,000 operations

• Mounting Type
• Flush Mounting

• No Of Poles
• 1 Pole

• Number of Module
• 1M / 2M / 3M

• Operating Temperature
• -5C to +45C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• Instantaneous

• Size
• Modular (as per module size)

• Stoke
• 100,000 operations

• Temperature Range
• -5C to +45C

• Weight
• Approx 25g (1 Module)

• Automation Grade
• Manual

• Circuit Type
• 1-way / 2-way

• Color
• Aluminium Grey

• Contact Resistance
• <20 m

• Current Rating
• 10A

• Finish Type
• Matte Aluminium

• Insulation Resistance
• >2000 M at 500V DC

• Material
• Polycarbonate and Aluminium

• Max. Current
• 10A

• Max. Voltage
• 250 V AC

• Mechanical Life
• >40,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to +50C

• Product Type
• Soft Alu Switch

• Protection Level
• IP20

• Rated Voltage
• 250V AC

• Response Time
• Instantaneous

• Size
• 86mm x 86mm

• Stoke
• Soft action with tactile feedback

• Temperature Range
• -5C to +50C

• Weight
• Approximately 50g

• Automation Grade
• Manual

• Circuit Type
• Single Pole

• Color
• Magnesium

• Contact Resistance
• <20 m

• Current Rating
• 6A, 10A, 16A options

• Finish Type
• Matte Finish

• Insulation Resistance
• >2000 M

• Material
• Polycarbonate, Magnesium Alloy

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• >40,000 cycles

• Mounting Type
• Flush Mount

• No Of Poles
• 1

• Number of Module
• 1 Module

• Operating Temperature
• -5C to 40C

• Product Type
• Switch

• Protection Level
• IP20

• Rated Voltage
• 250V

• Response Time
• Instantaneous switching

• Size
• Modular (86x86 mm approx.)

• Stoke
• Soft Action

• Temperature Range
• -5C to 40C

• Weight
• Approx. 35g

• Automation Grade
• Manual

• Circuit Type
• 1 Way

• Color
• Graphite

• Contact Resistance
• 15 m

• Current Rating
• 6A/10A/16A

• Finish Type
• Matte Finish

• Insulation Resistance
• >= 2000 M

• Material
• Polycarbonate

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• > 40,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1 Module

• Operating Temperature
• -5C to +40C

• Product Type
• Electrical Switch

• Protection Level
• IP 20

• Rated Voltage
• 250V AC

• Response Time
• Instantaneous

• Size
• 86mm x 86mm

• Stoke
• Smooth action stroke

• Temperature Range
• -5C to +40C

• Weight
• Approx. 50g

• Automation Grade
• Manual

• Circuit Type
• 1-way / 2-way

• Color
• White

• Contact Resistance
• <20 m

• Current Rating
• 10AX / 16AX

• Finish Type
• Glossy

• Insulation Resistance
• >2000 M at 500V DC

• Material
• Polycarbonate Front Plate, Brass Components

• Max. Current
• 10A / 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• >100,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1M / 2M / 3M / 4M

• Operating Temperature
• -5C to +40C

• Product Type
• Modular Electrical Switch

• Protection Level
• IP20

• Rated Voltage
• 240V AC

• Response Time
• Instantaneous

• Size
• Standard Modular Sizes (1M, 2M, etc.)

• Stoke
• Less than 6mm

• Temperature Range
• -5C to +40C

• Weight
• Approx. 22 g (for 1M switch)

• Automation Grade
• Manual

• Circuit Type
• Single/Double

• Color
• White

• Contact Resistance
• 20 m

• Current Rating
• 6A, 10A, 16A

• Finish Type
• Glossy

• Insulation Resistance
• >100 M

• Material
• Polycarbonate, Brass

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• >40,000 cycles

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1, 2, 3, 4 Modular

• Operating Temperature
• -10C to 55C

• Product Type
• Electrical Switches and Sockets

• Protection Level
• IP20

• Rated Voltage
• 220V-250V

• Response Time
• Instant

• Size
• 86mm x 86mm

• Stoke
• Normal

• Temperature Range
• -10C to 55C

• Weight
• Approx. 85g

• Automation Grade
• Manual

• Circuit Type
• SPST (Single Pole Single Throw)

• Color
• White

• Contact Resistance
• 20 m

• Current Rating
• 6A, 10A, 16A

• Finish Type
• Glossy

• Insulation Resistance
• >2000 M at 500V DC

• Material
• Polycarbonate with Brass Parts

• Max. Current
• 16 A

• Max. Voltage
• 250 V AC

• Mechanical Life
• >100,000 operations

• Mounting Type
• Flush Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1M, 2M, 3M, 4M, 6M

• Operating Temperature
• -5C to +65C

• Product Type
• Modular Electric Switch

• Protection Level
• IP20

• Rated Voltage
• 250 V AC

• Response Time
• Instant

• Size
• Standard Modular Size

• Stoke
• Soft click mechanism

• Temperature Range
• -5C to +65C

• Weight
• Approx. 30g per module

• Automation Grade
• Manual

• Circuit Type
• SPST (Single Pole Single Throw)

• Color
• White

• Contact Resistance
• < 20 m

• Current Rating
• 6A / 10A

• Finish Type
• Glossy

• Insulation Resistance
• > 2000 M

• Material
• Polycarbonate (PC), Flame Retardant

• Max. Current
• 10A

• Max. Voltage
• 250V AC

• Mechanical Life
• > 40,000 Cycles

• Mounting Type
• Flush Mount

• No Of Poles
• Single Pole

• Number of Module
• 1

• Operating Temperature
• -5C to +65C

• Product Type
• Modular Switch

• Protection Level
• IP20

• Rated Voltage
• 240V

• Response Time
• Instant

• Size
• 1 Module

• Stoke
• 40,000 Operations

• Temperature Range
• -5C to +65C

• Weight
• 18g (approx)
